XP-3 Micro-Start Portable Charger

The super compact MICRO-START XP-3 PPS (Personal Power Supply) is equipped with two USB ports for Dual Charging capability. Additionally the XP-3 has ability to be recharged from any USB port via Micro-USB tip. (The original model of XP-3 had only one USB port and charged via wall charger.) So small it fits in your pocket yet so powerful it starts cars, trucks, motorcycles, ATVs, UTVs, snowmobiles, watercraft and more!

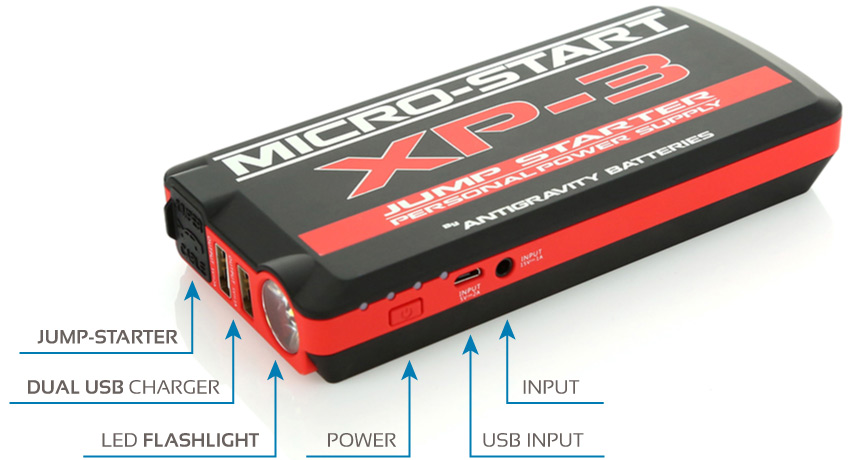

XP-3 Ports, Multi-Function Device
XP-3 Micro-Start Functions & Features

JUMP-STARTER

Safely and easily Jump-Start your car, truck or powersports vehicles. XP-3 has 200 Amps starting current with 400 Amps Peak. Jump-start up to 20X on a single charge! Start vehicles with gas engine size up to 5.7 liter V8. (Not intended for large V-Twin motors.) The included Smart Clamps have a sturdy design with strong pivot points. They also feature multiple built-in protections.

POWER SUPPLY

Conveniently Charge & Power your devices. The XP-3 has great capacity for back-up power: 8000 mAh! It has TWO USB ports to charge most or all of your USB-powered electronics (Smartphones, Tablets, Cameras, PSPs, MP3 Players, Bluetooth devices and more). There is a 5V 1A USB port and a 5V 2A USB port for faster charging.

FLASHLIGHT

To assist in lighting your way in dark places or at night, the XP-3 also features an ultra bright 110-Lumen LED Flashlight. It has 3 modes: steady beam, strobe pattern, and SOS flash pattern – cycle through with the press of a button.

Multi-Function Power Supply: XP-3

The MICRO-START XP-3 lithium battery pack is small & lightweight (less than 1 lb) so you can take back-up power wherever you go! Whether commuting, camping or traveling, be confident you can start your vehicle, make an important call, and keep your devices powered. The XP-3 itself is conveniently recharged via Micro-USB and can be charged from any USB port or charging device, like your computer or cell phone charger. Cable is included for this and for powering your devices. The XP-3’s compact, durable carry case comes with everything you need for jump-starting & charging.

Technical Specs & Features: XP-1 Micro-Start

XP-3 SPECS

  • SIZE: 6″ x 3″ x 1″ (mm: 152x76x25)
  • WEIGHT: 10.5 oz (299 g)
  • INPUT: Micro-USB (5V 2A)
  • OUTPUT: DUAL USB (5V 1A,  5V 2A)
  • CAPACITY: 8000 mAh (29.6 Wh)
  • POWER: 200A Starting Current / 400A Peak
  • JUMPSTART: Gas Engines up to 5.7 Liter V8
  • FLASHLIGHT: Ultra-Bright 110-Lumen LED
  • FULL CHARGING TIME: ~5 hours (via 5V 2A)
  • OPERATING TEMPERATURE: -30°C to 50°C
  • CASE SIZE: 8.75″ x 4.6″ x 3.6″ (mm:222x117x91)
  • Top Quality design throughout. UL-listed lithium battery cells
  • Lighted battery capacity indicator
  • Automatic power-off when not in use
  • Carry Case is made of durable Nylon material and has mesh pockets with elastic openings to neatly organize all parts.

SMART CLAMPS

  • Intelligent mini Jump-Start Clamps.
  • Multiple Safety Protections built-in.
  • Prevents reverse polarity connection, over-charge, over-discharge, short-circuit and back-charge.

IN THE BOX

  • CARRY CASE
  • XP-3 MICRO-START
  • SMART JUMPER CLAMPS
  • 4-INTO-1 USB CABLE

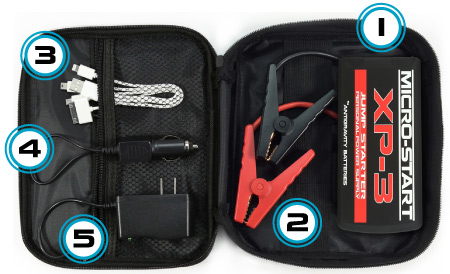

Kit Details for XP-3 Power Bank
  1. XP-3 MICRO-START PPS

    Personal Power Supply / Jump-Starter / Flashlight

  2. SMART JUMPER CLAMPS

    Mini, durable Jump-Starting Clamps. Multiple Safety Protections.

  3. MULTI-TIP USB CABLE (4-into-1)

    Charging Tips: Mini USB, Micro USB, Apple 8-pin, USB-C.

NOTE: Now the Carry Case is more compact! Photo shows previous case.

XP-3 Complete Kit Micro-Start Accessories
FAQ & Other Details: XP-3 Portable Power

Questions? Read the following MICRO-START FAQ for answers to common questions, or check our Downloads page for Product Sheets and other helpful documents. Still wondering? Feel free to call our knowledgeable Support team: 310 527 2330. Or visit our Antigravity Batteries website where you can live-chat with one of our techs!

This depends on the size of the motor and state of charge, but regular 4 and 6 cylinder cars about 20 times or more, and V8s about 10 times in a row. Make sure your connections are good, and do not jump-start with XP-3 below 3 capacity lights lit.

The MICRO-START XP-3 can charge the average cell phone about 6 times depending on the size of the cell phone’s battery. XP-3 has 8000 mAh of capacity. It can generally charge a tablet from 2 to 3 times. This depends on the size of the tablet and if you are on the internet or playing games which uses more power.

The MICRO-START can charge a phone in about 40 minutes to one hour. It depends on the phone, and of course whether you are using the device while it’s charging. The XP-3 has a 2 Amp charge rate at its left side USB port to charge electronics more quickly.

On average the MICRO-START can hold a charge about 6 months. This will depend on the conditions the MICRO-START is stored in. Heat and cold fluctuations can affect this. It is best to check the state of charge at least once every 3-4 months.

To check the state of charge on the MICRO-START, press the power button. The XP-3 has 4 lighted capacity indicators which will show the state of charge. Each light is equal to 25% capacity. XP-3 can charge devices until no lights are lit, but should only be used to jump-start vehicles with a minimum of 3 lights lit (75% capacity).

  • 1 bar = 25%
  • 2 bars = 50%
  • 3 bars = 75%
  • 4 bars = 100%

Our MICRO-START power banks all meet the FAA criteria for Lithium batteries/external chargers allowed as Carry-On items. But they cannot be in Checked baggage. The guidelines state that consumer-sized Lithium-Ion batteries, up to 100 Watt-hours (Wh) per battery, are allowed on planes. All MICRO-STARTS are under that limit (Watt-hours is printed on the back of each MICRO-START). For more information about carry-on and portable devices, refer to the FAA website.

Please also check with your Airline before taking your MICRO-START because each Airline may have different guidelines.

To recharge the XP-3, you may use any standard USB cable with Micro-USB tip. For jump-starting, do Not use any clamps other than the Smart Clamps provided with your XP-3 kit. We offer replacement chargers and clamps if needed.

For charging your devices, you may use another USB cable you may already have for your device.

Yes, Antigravity Batteries offers a full line of Accessories for your MICRO-START PPS, including replacement parts. We offer the following replacements for XP-3:

We offer various other adapters and cables for jump-starting and charging. You can check out all MICRO-START Accessories here.
